This product has been superseded by

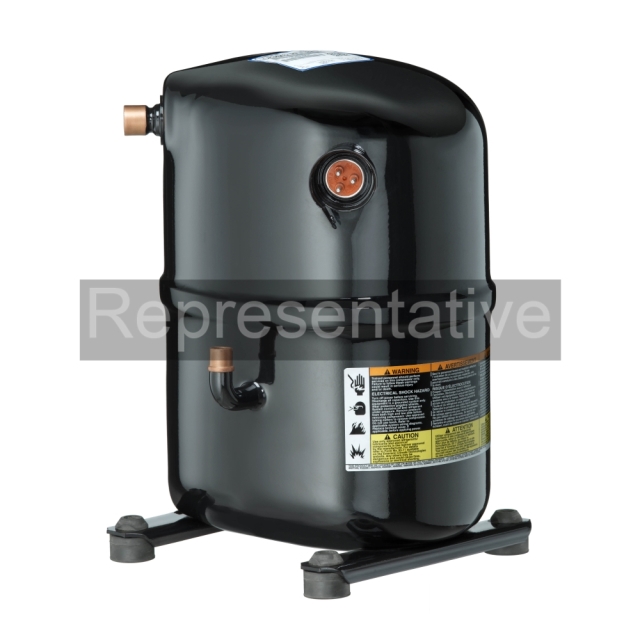

34000 BTU R22 208/230-1 Phase Copeland Reciprocating Compressor
This product has been superseded by
34000 BTU R22 208/230-1 Phase Copeland Reciprocating Compressor
Description
CR34KQ-PFV-980WB
C = Hermetic Reciprocating Compressor
R = R22/R407C, High Temp A/C, H/P
34K = 34000 BTU
Q = Quiet Model
P = Single Phase
F = Internal Inherent Protection, One Protector, use with contactor
V = 200-1-50 / 208/230-1-60
980 = Bill of Material Product Variation
WB = Accessory Option Code
C = Hermetic Reciprocating Compressor
R = R22/R407C, High Temp A/C, H/P
34K = 34000 BTU
Q = Quiet Model
P = Single Phase
F = Internal Inherent Protection, One Protector, use with contactor
V = 200-1-50 / 208/230-1-60
980 = Bill of Material Product Variation
WB = Accessory Option Code
Standard Features
- Rugged reciprocating technology
- Superior efficiency
- Best suited for 55°C high ambient conditions
- Strong liquid handling capability
- Industry leading reliability
- Multiple foot mounting configuration
- UL and IECEE certified
Documents
There are no documents available.
Specifications
- BrandCopeland
- ApplicationAC/HP Duty, High Temperature
- BrandCopeland
- Line Voltage (60Hz)240V
- Rated Voltage (60Hz)208/230
- RefrigerantR22
- Refrigerant Oil TypeMineral Oil (MO)
- Variety TypeReciprocating
- Compressor Capacity34000 btu
- Frequency50Hz, 60Hz
- Motor Phase1
