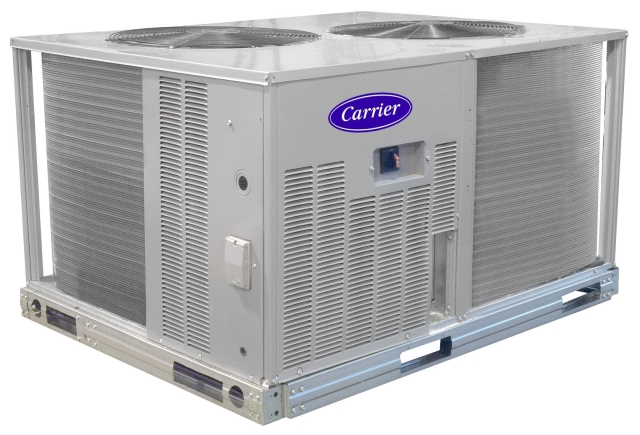

38AUQA08A0A5-0A0A0
38AU = Commercial Split System Puron R-410A Refrigerant
Q = Heat Pump
A = Refrigerant Options - None
08 = 23.2 kW / 6.6 Nominal Tonnage
A = Factory Assigned - Default
0 = Factory Assigned - Default
A = Coil Options (Condenser) Al/Cu Standard
5 = 208/230/3/60 Voltage
- = Design Rev - Factory Assigned
0 = Base Unit Controls - Standard Electrical Mechanical Controls
A = Factory Assigned - Default
0 = Service Options -None
0 = Electrical Options - None

Performance Features

• 38AUQ Heat Pump EERs up to 11.0 and 3.5 COP
• ASHRAE 90.1 Efficiency Compliant
• Standard crankcase heater
• Compressor vibration isolation
• Low ambient temperature control
• Unit performance certified in accordance with ARI standard 340/360

Reliability Features

• High and low-pressure switches
• Anti-short cycling protection
• Prepainted, galvanized steel cabinets that passes 500-hour salt-spray test
• Compressor overload protection
• Scroll compressor
• E-Coat coil protection
• UL, UL, Canada or ETL approved

Installation Features

• Shipped with Puron (R-410A) refrigerant partial charge
• Single-piece design
• Perimeter base rail with forklift slots and lifting holes facilitates rigging
• Suitable for mounting on the ground or the rooftop
• 24V control circuit transformer permits quick, easy wiring of thermostats

Maintenance Features

• Comfort Alert™ diagnostic board
• Powered and non-powered 115-v convenience outlet
• Compressor access panel with easy grip handle
• Easy starting, no-strip screw feature
• Non-fused disconnect switch

Standard Limited Warranty

• 5 years parts only on compressor
• One year parts only on all other parts
