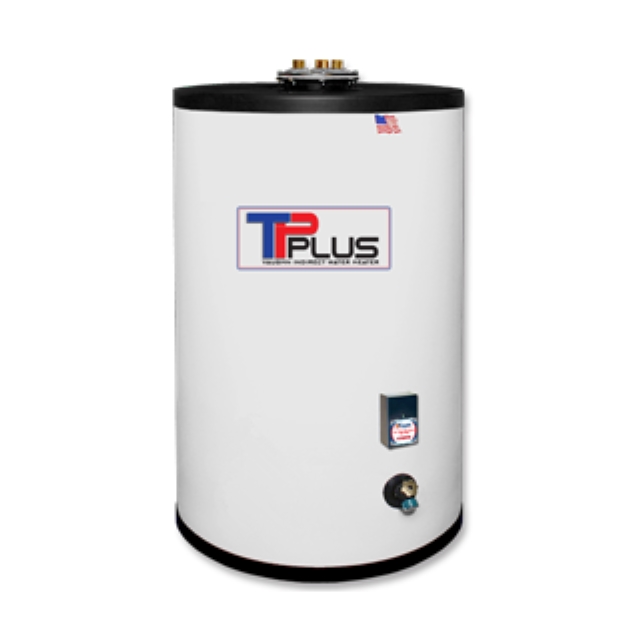

The Vaughn Top Performer Plus Indirect Water Heater combines advanced engineering and Hydrastone cement lining to provide the industry's longest lasting and most reliable indirect water heater. The high efficiency design includes a factory installed and field removable all copper heat exchanger coil to provide maximum hot water output while significantly reducing mineral build up. The Vaughn industry leading technologies include an electronic thermostat with adjustable differential to ensure delivery of highly accurate and consistent hot water. The advanced tank design utilizes a Hydrastone cement lining for long life and is insulated with polyurethane foam for high efficiency and the lowest stand by heat loss rating in the industry. Time proven components, advanced engineering, long lasting tank and high efficiency design all make the Vaughn Top Performer Plus Indirect Water Heater the preferred choice for your water heating needs.

Features & Benefits

• Low Energy Cost
• Highest Efficiency
• High Output
• Long Service Life
• Unique Cold Water Diffuser
• Electronic Thermostat
• O-Ring Gasket Design
• Field Removable Heat Exchanger
• Reduces Operation Expenses by Eliminating Periodic Inspection and Replacement Costs Associated with Maintaining an Anode Rod Advanced Electronic Controller
• Electronic Thermostat Provides Accurate and Reliable Temperature Control

Specifications

• Inlet/Outlet Connection: 1-1/2 Inch Male Threaded x 1-1/2 Inch Male Threaded
• Relief Valve Details: T and P Relief Valve Supplied
• Tank Inner Lining: Hydrastone Cement
• Tank Dimensions: 28 Inch Diameter x 46-1/2 Inch Height
• Tank Material: Steel
• Tank Capacity: 70 Gallon
• Tank Warranty: 10 Year Limited
• GPH Recovery: 475 GPH at 115 Deg F
• Boiler Supply/Return Connection: 1 Inch Male Threaded x 1 Inch Male Threaded
• Gross Boiler Output: 235000 BTU/Hour
• Heat Exchanger Mounting Type: Top
• Heat Exchanger Coil Type: Copper Fin
• Head Loss: 14 Foot Water Column
• Flow Rate: 14 GPM
• Insulation Details: 2 Inch Thick Polyurethane Foam
• Options: Double Wall Heat Exchanger, Back-Up Electric Heating Element for Supplemental Heating
• Inclusions/Features: Low Energy Cost, Highest Efficiency, High Output, Long Service Life, Unique Cold Water Diffuser, Electronic Thermostat, O-Ring Gasket Design, Field Removable Heat Exchanger
• Application: Residential, Commercial
• Applicable Standard: AHRI, ETL (Canada and US)
Jacket Material Plastic
