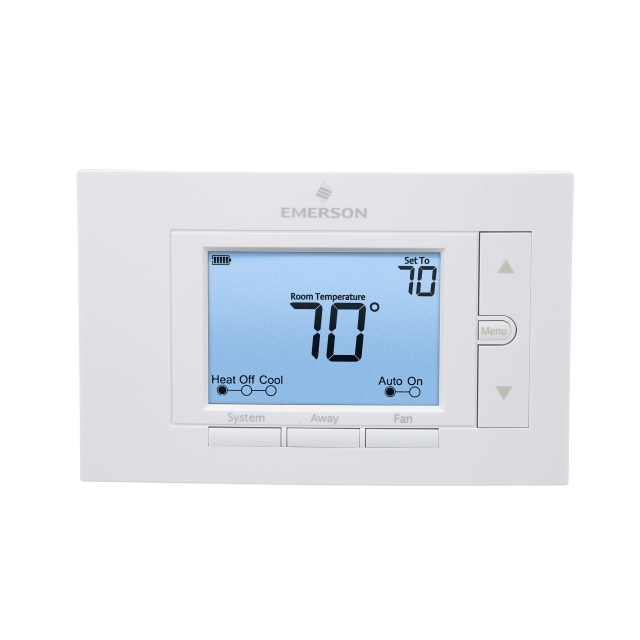

The 80 Series thermostats are the perfect fit for every application with universal, conventional and heat pump models. The standard footprint makes replacements and upgrades easier than ever Without leaving visible marks on the wall from the old thermostat.

Features & Benefits

• Large Display, Bright Backlight, High Contrast Screen
• Easy to Install with Built-In Level, Simple Set-Up Menu and Separate Subbase
• Keypad Lockout and Adjustable Heat/Cool Temperature Limits

Specifications

• Type: Universal, Non-Programmable, 2-Heat/2-Cool Conventional, 2-Heat/1-Cool Heat Pump
• Cover Type: Horizontal
• Voltage Rating: 30 Volt AC (Battery Powered), 20 to 30 Volt AC 50/60 Hertz (Hardwired)
• Current Rating: 2.5 Amp
• Temperature Rating: 32 to 105 Deg F
• Size: 6 Inch Width x 1-1/8 Inch Depth x 3-3/4 Inch Height
• Display Type 5 Square Inch Bright Backlit
• Terminal Designation RC, RH, C, W/E, W2, Y, Y2, O/B/6, G, L
• Set Point Temperature Range 45 to 99 Deg F
• Display Temperature Range 32 to 99 Deg F
• Humidity Rating 90 Percent (Non-Condensing)
• Includes Keypad Lockout
• Application Gas/Oil/Electric, 3-Wire Zone Valve, Millivolt System
• Applicable Standard NEC Class II
