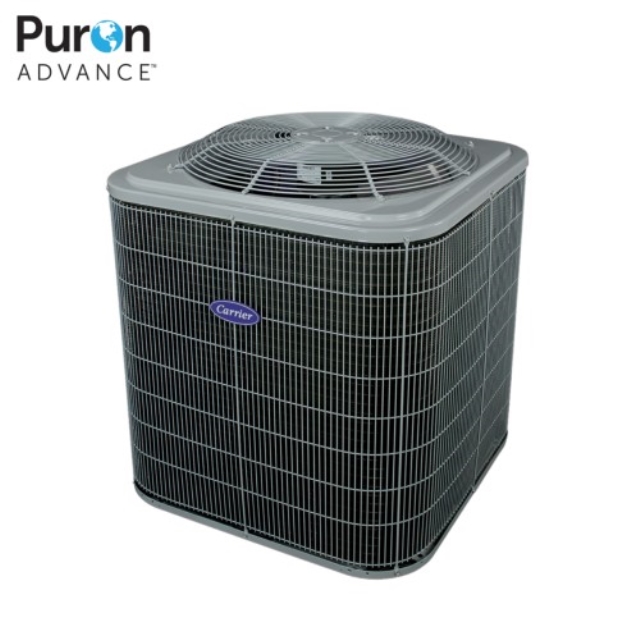

15S COMFORT AC 2.5T R454 PUR ADV 208/230-1
15S COMFORT AC 2.5T R454 PUR ADV 208/230-1
Description
26SCA530W003
26SÂ = Air Conditioner with Puron Advance Refrigerant (R454B) Single StageÂ
CÂ = Comfort
AÂ = Initial Series
5Â = 14.3 SEER2
30Â = 30,000 Btuh
WÂ = Stnd SW AC
0Â = Not Defined
0Â = Not Defined
3Â = 208/230 ---1
Replacement for
Specifications
- BrandCarrier
- BrandCarrier
- CoastalFalse
- ConfigurationVertical
- FamilyComfort
- Line Voltage (60Hz)240V
- RefrigerantR454B
- Suction Line Size3/4"
- Tonnage2.5
- Air FlowVertical
- CFM Cooling850
- CFM Nominal3315
- Coil Guard TypeGrill
- Compressor RLA12.7
- Compressor TypeScroll
- Condenser Motor HP1/10
- Condenser Motor RPM825 rpm
- Condenser Motor TypePropeller Type, Direct Drive
- Frequency60
- Gas Stages1-Stage
- Height38 7/8" in
- High PressureFalse
- High Pressure SwitchFalse
- InverterFalse
- LEED CertifiedFalse
- Length31 3/16" in
- Liquid Line FittingSweat
- Liquid Line Size3/8" in
- Liquid Line Size3/8"
- Low PressureFalse
- Low Pressure SwitchFalse
- LRA75.6
- Maximum Circuit Breaker25
- Maximum Piping Length250
- Maximum Voltage253
- MCA17
- Metering DeviceTXV
- Minimum Voltage197
- Motor Phase1
- Number Of Fan Blades3
- Outdoor Coil MaterialTube
- Outdoor Fan Motor FLA0.6
- Outdoor FPI25
- Outdoor Number of Rows1
- Shipping Height43 in
- Shipping Length34.25 in
- Shipping Weight169 lb
- Shipping Width34.25 in
- Sound BlanketFalse
- Sound BlanketFalse
- Suction Line FittingSweat in
- Suction Line Size3/4"
- UL ListedFalse
- UL RecognizedFalse
- Voltage208/230-1
- Weight149 lb
- Width31 3/16" in
Equipment Parts List
There is no data available for this product
