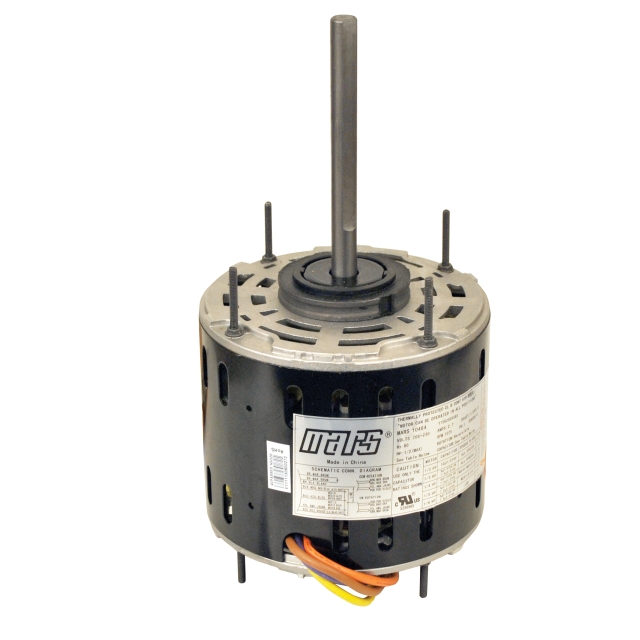

Furnace Blower Motor, 5-1/2" DD 1/5-3/4hp 230V 1075/4 OAO
Furnace Blower Motor, 5-1/2" DD 1/5-3/4hp 230V 1075/4 OAO
Description
Mars Motors & Armatures, Inc. 1/5 to 3/4 HP, 208 to 230 VAC 60 Hz 1-Phase, 4.2 A, 1075 RPM, 4-Speed, Reversible, Class B Insulation, Sleeve Bearing, All Angle Mount, OAO, Multi-Horsepower Direct Drive Blower Motor
Features & Benefits
- Multi-Horsepower Direct Drive Blower Motors are Ideal for Truck Stock
- Rheem Shell Mounting Holes
- Auto Thermal Overload Protected
- 2-1/4 Inch Resilient Ring
Specifications
- Enclosure Type: OAO
- Power Rating: 1/5 to 3/4 HP
- Voltage Rating: 208 to 230 Volt AC 1-Phase
- Frequency Rating: 60 Hertz
- Motor FLA: 4.2 Amp
- Number of Speeds: 4
- Speed Rating: 1075 RPM
- Reversible: Yes
- NEMA Frame Size: 48
- Insulation Class: B
- Mounting: All Angle
- Application: HVAC, Blower
- Approval: CUL, UL
- Type Permanent Split Capacitor
- Bearing Type Sleeve
- Diameter 5-1/2 Inch
- Shaft Size 1/2 Inch Diameter x 5.8 Inch Length
- Lead Length 41 Inch
- Ambient Temperature Rating 40 Deg C
- Excludes Capacitor
Documents
Specifications
- BrandMARS
- Bearing TypeBall
- Enclosure TypeOpen Drip Proof (ODP)
- Frame Size48
- HP1/5-3/4
- Insulation ClassClass B
- Motor Thermal ProtectionAuto
- Mounting MethodResilient
- Number of Speeds4
- RotationClockwise, Counter Clockwise
- RPM Range1001-1100
- Shaft Diameter1/2"
- Shaft PositionAll Angle, Horizontal, Vertical Shaft Down, Vertical Shaft Up
- TypeDirect Drive
- TypeBlower Motor
- VarietyPSC
- Voltage208/230V
- Frequency60Hz
- Motor Phase1
Equipment Parts List
There is no data available for this product
